temp-salt-vs-depth-time

Evaluation figures from ACCESS-OM3 experiment MC_25km_jra_iaf+wombatlite-test5.1-8f50b769 produced by notebook temp-salt-vs-depth-time.ipynb. Co-authors for this notebook (via Git history): Andrew Kiss, Christopher Bull, ezhilsabareesh8, Andy Hogg, Minghang Li, Sam Watson, Anton Steketee. View rendered notebook

Horizontal mean temperature and salinity Hovmollers

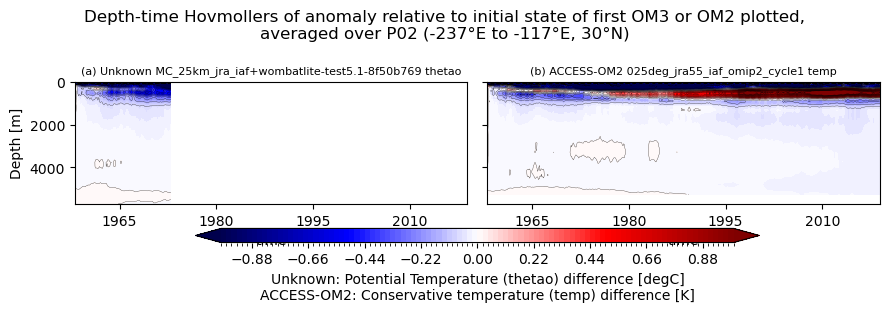

temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean thetao Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Caption: temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean thetao Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Horizontal mean temperature and salinity Hovmollers

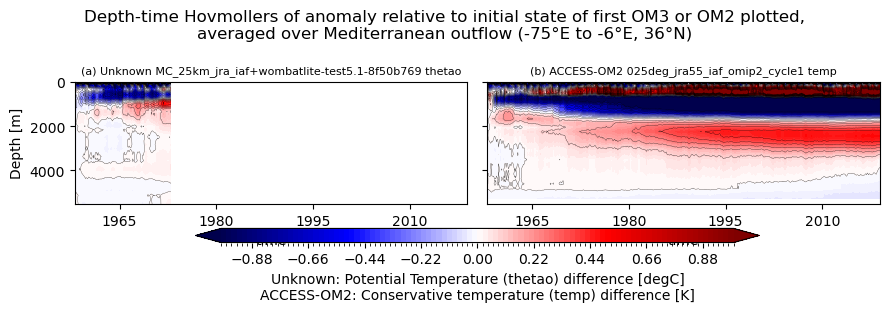

temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean thetao Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Caption: temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean thetao Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Horizontal mean temperature and salinity Hovmollers

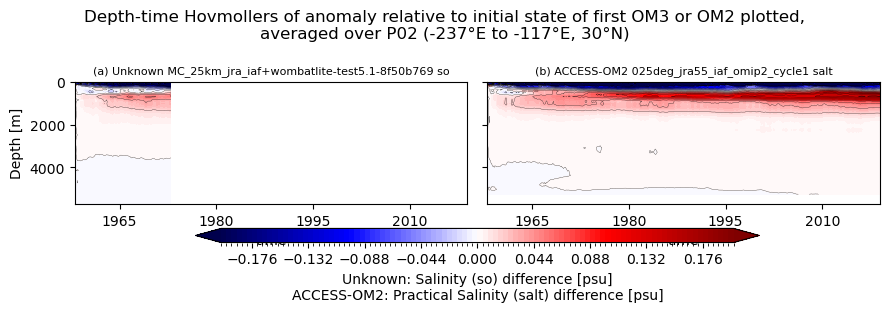

temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean so Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Caption: temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean so Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Horizontal mean temperature and salinity Hovmollers

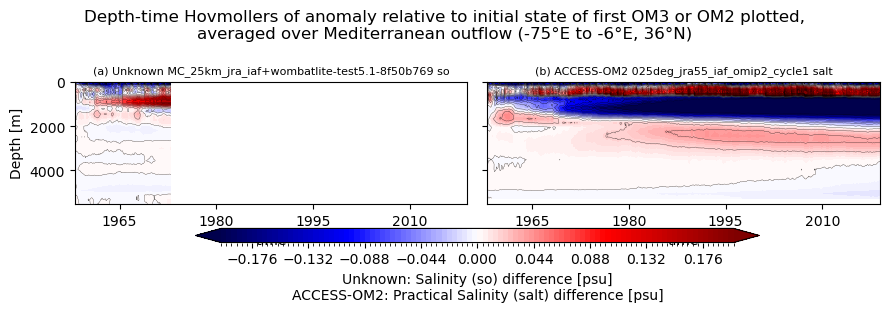

temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean so Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)

Caption: temp-salt-vs-depth-time.ipynb: Unknown and ACCESS-OM2 horizontal mean so Hovmollers: drift from initial condition, vs depth and time. GitHub issue: Hovmoller temperature anomaly (depth-time)
